The liner trap: why arches rot
Every turn of the tire flings slush upward, and a portion of it wedges into the gap between the plastic liner and the steel arch. Unlike a hood or a door skin, that pocket sees no airflow and no sun, so the pack of salty grit stays damp long after Toronto’s streets have dried out. The steel above it sits in brine for weeks at a time.

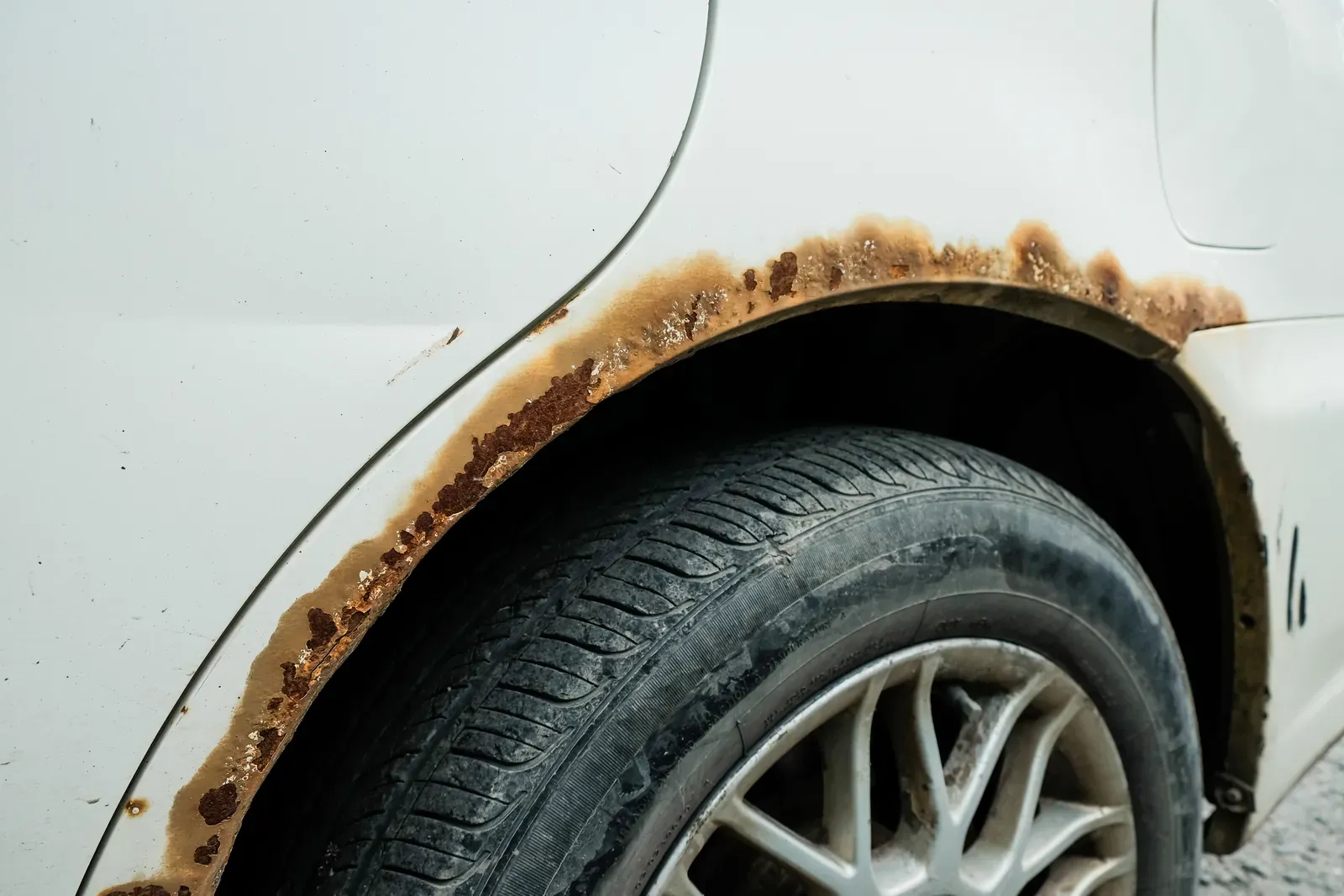

The arch lip makes everything worse. On most cars the lip is a hem — the outer skin folded back over an inner flange — and that fold wicks moisture in and refuses to release it. Corrosion sets up shop inside the hem, invisible, and only announces itself once it has pushed up through the paint on the face of the panel.
Behind the arch on many vehicles sits a second trap: the low shelf where the quarter meets the bumper or the sill, where flung mud settles and dries into a sponge. Every drive down a wet Allen Road re-soaks it, every thaw feeds it salt, and the steel behind it stays damp deep into spring. When we open arches up for repair, that shelf is where the surprise usually lives.
A bubble on the arch is a late symptom
By the time blistering is visible from standing height, the process is established inside the fold and moving along it. Our road salt page tells that story for the whole car, so here the arch-specific point is direction: hem corrosion travels the curve of the lip, which is why a spot shrugged off in December reappears in April as an arc.
That is also why arch quotes priced off the visible bubble alone tend to grow. We estimate arches expecting the fold to be involved, and we would rather write that expectation into the number up front than deliver it as a surprise after the wheel comes off.
For a second reading that needs no tools, crouch directly behind the car at bumper height and sight along the arch. Hem corrosion often telegraphs as a faint ripple or a shadow line along the lip before the paint ever cracks. Catching it there is genuinely early — the stage where the repair is at its smallest — and the glance costs nothing folded into every seasonal tire swap.
Fender or quarter panel: two different jobs
A front fender bolts to the body. When one rusts badly, hanging a new or clean used fender and painting it to match is often simpler and longer-lasting than surgery on the old panel — a judgment we make case by case depending on parts supply for your model.
A rear quarter is welded structure, so nobody sensibly replaces one over arch rust. Instead, the corroded lip section is cut out and a formed repair section — off-the-shelf for many popular models — is welded in and finished. The same result at the arch, with an entirely different scope behind it.
Cost follows that split. Fender work tends to be contained and predictable because the panel unbolts and the paint stays local. Quarter work happens beside glass, interior trim, and often the fuel filler, so the same size of visible rust runs higher on a quarter than on a fender. Location writes the estimate, not the bubble.
What a proper arch repair includes
Done right, arch work happens from both faces of the steel. The wheel and the liner come out first, because repairing the outside while a wet grit pack stays pressed against the inside is half a repair with a short life expectancy.
The refinish deserves equal billing with the metalwork. An arch sits at eye level from the sidewalk, so colour and texture have to carry across the quarter, the door edge, and often the bumper corner. That is booth-and-blend territory — computerised colour match, then clear across the blend zone — and it is why a finished arch should be impossible to pick out in July sunlight.
- Wheel and arch liner removed, the pocket cleaned back to bare steel
- Corroded lip and panel sections cut out until clean metal shows
- New steel welded in and the hem dressed to the factory profile
- Seams sealed and the cavity behind the arch protected
- Panel refinished and blended to match the door and bumper
- Liner refitted with fresh fasteners, not zip ties
Keeping the next arch from starting
Prevention at the arches is mostly housekeeping. Rinse the wheel wells during winter thaws so the grit pack never settles in, refasten any liner that sags or flaps — a loose liner funnels spray straight onto painted steel — and seal stone chips on the lip while the metal under them is still bright. Our undercoating guide covers the deeper protective options with an honest eye.
And when a bubble does show up, move on it. Insurance policies exclude corrosion, so there is no claims process to wait on — only a repair whose price tracks how far along the fold it has travelled. Photos of the arch straight-on and at an angle are enough for a free written estimate, back fast.
What does not work is ignoring the liner because the paint above it still looks fine. Liners loosen quietly — a fastener lost at the car wash, a tug from a frozen windrow — and the damage they allow shows up a season later, where nobody connects the two events. A minute spent checking fasteners each spring protects paint you have already paid for.
